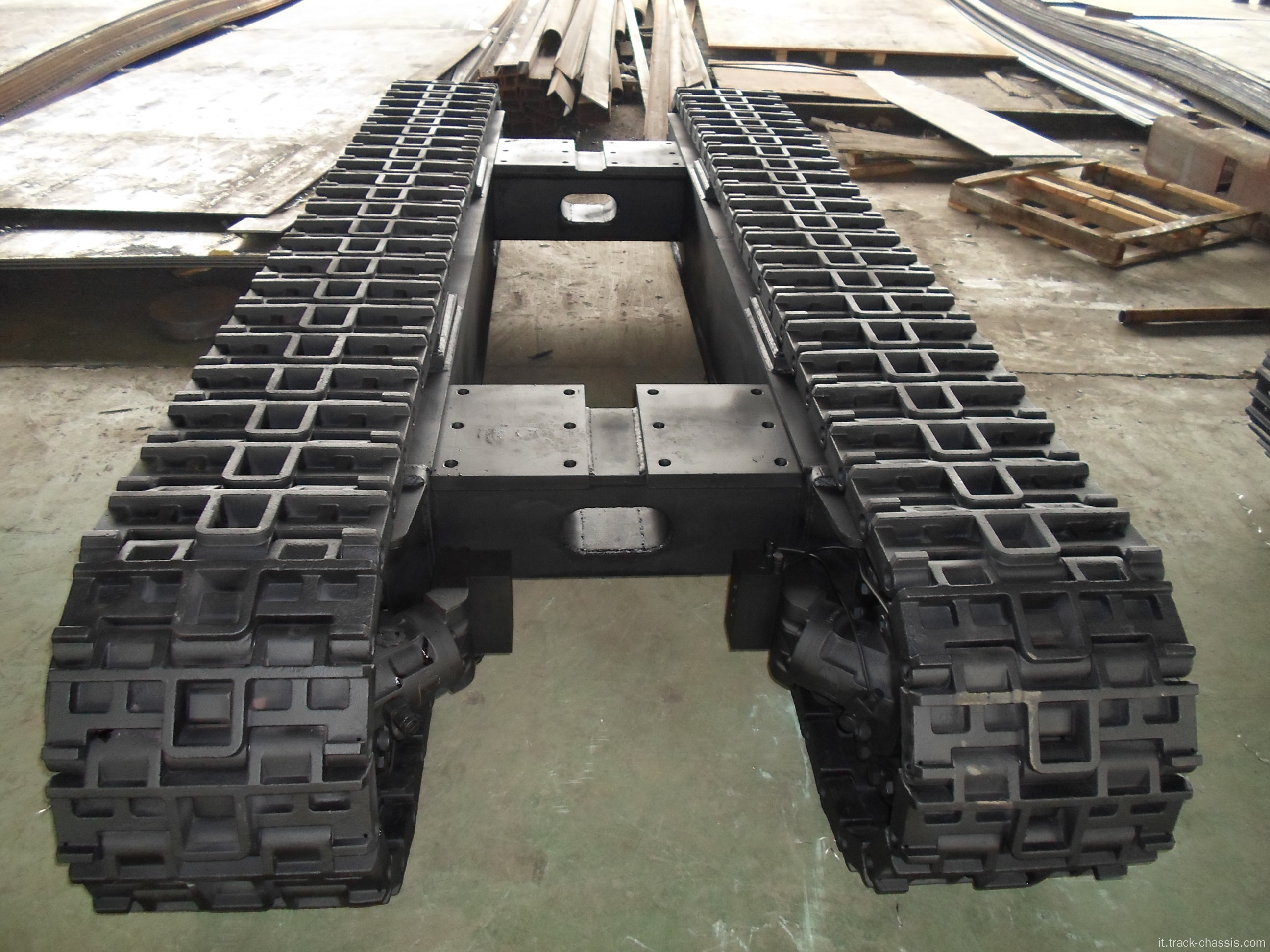

Streaming Mini Crawler in acciaio con cuscinetti di gomma
Ottieni l'ultimo prezzo| Tipo di pagamento: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Quantità di ordine minimo: | 1 set |
| Tipo di pagamento: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Quantità di ordine minimo: | 1 set |
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location: None
Compatible Brand: Other
Year: -
Ore Lavorative: 10001-20000
Type: mini crawler undercarriage
Loading Capacity: 7 ton
Payload: 5.5 ton
Max Gradeability: 35%
Servizio Personalizzato: Disponibile e gratuito
Colore: Nero o per cliente
Aplikasi: Rubber Track Drive System machine
After Warranty Service: Video Technical Support
After-sales Service Provided: Video Technical Support
Place Of Origin: Zhejiang, China
| Unità vendibili | : | set |
The file is encrypted. Please fill in the following information to continue accessing it
|
Length
|
1200mm
|
|
|
||
|
Loading Capacity
|
1000 KG(set)
|
|
|
||
|
Payload
|
500-600 KG(set)
|
|
|
||
|
Distance between center
|
829 mm
|
|
|
||
|
Pitch
|
72 mm
|
|
|
||
|
Track width
|
180 mm
|
|
|
||
|
Track Frame
|
No/Weld/Bolt
|
|
|
||
|
Motor Displacement
|
16.1 ml/r
|
|
|
||
|
Max speed
|
2.3 km/h(Each side 23L/min)
|
|
|
||
|
Max Output Torque(each side)
|
1150N.m
|
|
|
||
|
Max Gradeability
|
35%
|
|
|
||
Dettagli dei prodotti:
1. Frame di binari interrotti. Siamo in grado di personalizzare il crawler di gomma sotto le esigenze del cliente.
2. Manutenzione: suggerimenti per aiutare i clienti a mantenere il crawler sottoscritto e come più a lungo la durata del servizio.
3. Buoni pezzi di ricambio
