Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location: None
Compatible Brand: Other
Year: 2016
Working Hours: 10001-20000

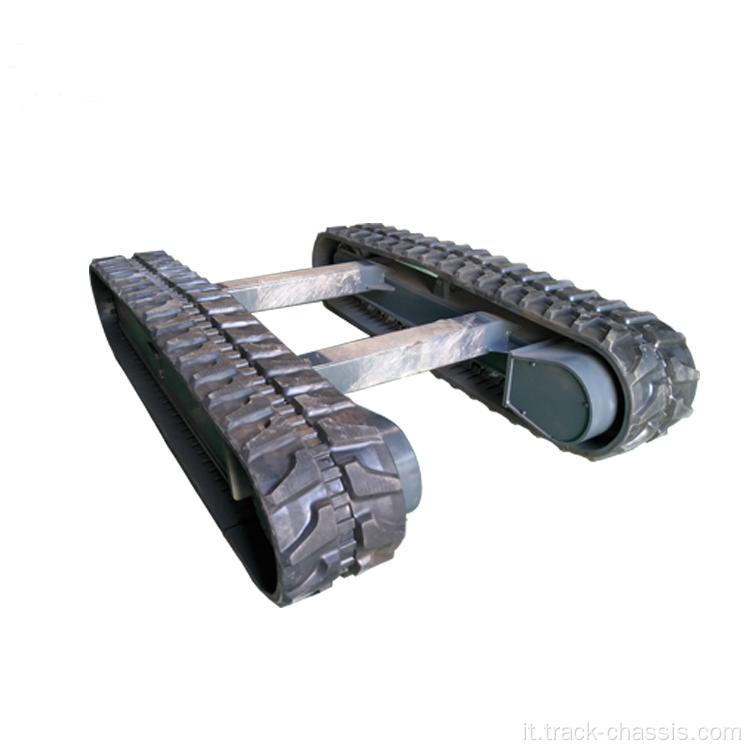

Type: Hydraulic rubber track chassis
Loading Capacity: 8 ton
Payload: 6.2ton
Other Motor Choice: Available
Max Gradeability: 25°
Customized Service: Available and free
Color: Black or Per to Customer
Aplikasi: rubber crawler chassis machine
Warranty: 1 Year
Place Of Origin: Zhejiang, China
| Unità vendibili | : | set |
The file is encrypted. Please fill in the following information to continue accessing it
|

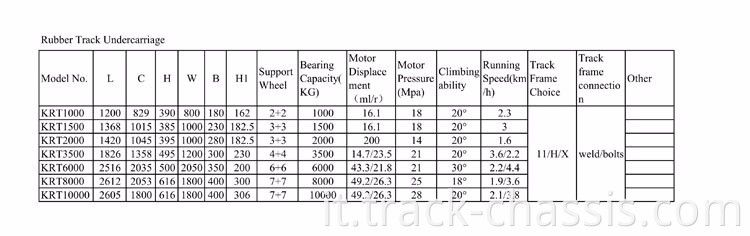

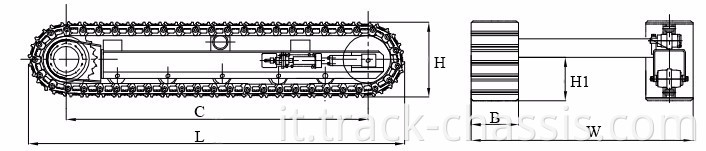

Length
|
2612mm
|
|
|
||
|
Loading Capacity
|
8000 KG
|
|
|
||
|
Payload
|
6200 KG
|
|
|
||
|
Distance between center
|
2053 mm
|
|
|
||
|
Pitch
|
72.5 mm
|
|
|
||
|
Track width
|
400 mm
|
|
|
||
|
Track Frame
|
Weld
|
|
|
||
|
Motor Displacement
|
49.2/26.3 ml/r
|
|
|
||
|
Max speed
|
1.9/3.6 km/h
|
|
|
||
|
Max Output Torque(each side)
|
8600/4600N.m
|
|
|
||
|
Max Gradeability
|
30%
|
|
|
||
Dettagli dei prodotti:
1. Telaio cingolato personalizzato. Possiamo personalizzare il telaio cingolato in gomma in base alle esigenze del cliente.
2. Manutenzione: suggerimenti per aiutare i clienti a mantenere il telaio e ad allungarne la durata.
3. Buoni pezzi di ricambio
Possiamo personalizzare il telaio cingolato in gomma in base alle vostre esigenze. Sopra sono riportati solo alcuni dei nostri modelli.

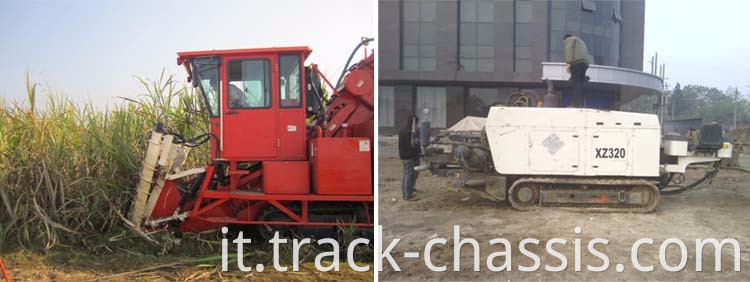

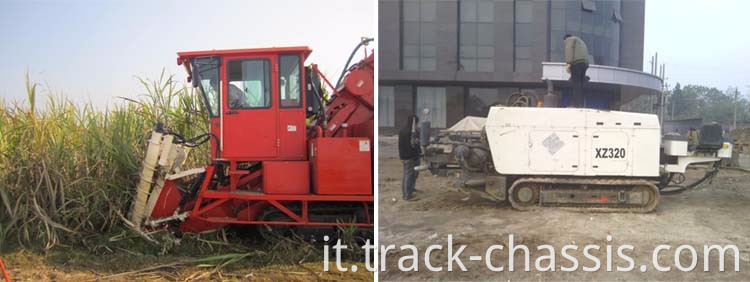

Di solito le fabbriche di macchine acquistano da noi il telaio cingolato e si collegano alle loro macchine.
